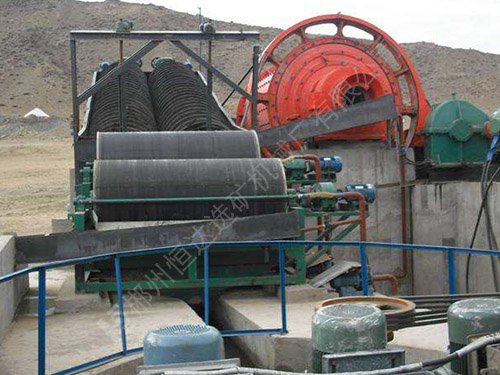

CTS(N、B)磁选机

CTS(N、B)

直接联系

郴州恒达选矿机械厂有限公司

湖南

产品规格型号
参考报价:

面议

品牌:

恒达

型号:

CTS(N、B)

关注度:

3883

范围(量程或细度):

--

产品介绍

 该系列磁选机是当今应用广的一种湿式磁选机。它适用于6mm以下的磁铁矿、磁黄铁矿、焙烧矿、钛铁矿等物料的湿式磁选,也可用于煤、非金属矿、建材等物料的除铁作业。磁选机的磁系,采用优质铁氧体材料或与稀土磁钢复合而成,筒表平均磁感应强度为100-600mT(即1000-6000高斯)。根据用户的需要,可提供顺流、逆流、半逆流型等多种不同表强的磁选机。本产品具有结构简单、处理量大、操作方便、易于维护等优点。
  顺流型(CTS):给矿方向与圆筒的旋转方向或磁性产品的移动方向一致,此类机适用于0-6mm的磁性矿石的精选和粗选,且精矿品位较高。
  逆流型(CTN):给矿方向圆筒的旋转方向或磁性产品的移动方向相反,此类机适用于0-0.6mm磁性矿石的粗选和扫选,以及选煤工业中的重介质回收。该类型机的尾矿中金属流失较优少,金属回收率高,故用来回收尾矿为有利,但精矿品位不够高。
  半逆流型(CTB):给矿方向或磁性产品移动方向与圆筒旋转方向相同,而非磁性产品移动与圆筒的旋转方向相反,该机型体的下部插有冲水管,用来调节选别作业的矿浆浓度。该机型适用于0-0.5mm的磁性矿石的粗选和精选,尤其适用于0-0.15mm的强磁性矿石的精选,回收率及精品位都较高。
  The series of magnetic separator is the most widely used wet magnetic separator. It applies to wet magnetic separation of magnetite and pyrrhotite, roasting ore, ilmenite, and other materials less than 6mm.It can also be used for removing iron from coal, non-metallic minerals, building materials, and so on. Magnetic Separator magnetic system use the complex union of high-quality ferrite materials and rare earth alnico, the average magnetic strength is 100-600mT (that is, Gaussian 1000-6000). According to the demands of users, we can offer fair current, reverse current semi- reverse current type, and many different strength magnetic separator. The product has simple structure, large handling capability, easy to use, easy to maintain advantages, etc.
  Fair current type (CTS): the direction of feeding is the same with the direction of rotating cylinder or the direction of the movement of magnetic products, such machines  is applied to the roughing and fining of magnetic minerals of 0-6mm, moreover, the grade of ore concentrate is high.
  Reverse current type (CTN): the direction of feeding is opposite with the direction of rotating cylinder or the direction of the movement of magnetic products ,such machines is applied to the roughing and scavenging of magnetic minerals 0-0.6mm, as well as the coal industry's heavy-medium recovery. The gangue of this type of machine have little metal loss, high metal recovery, so it is best to use it recovery gangue, but the ore concentrate grade is not high enough.
  Semi- reverse current (CTB): the direction of feeding or magnetic products is the same with the direction of rotating cylinder and the direction of cylinder rotation is opposite with the direction of non-magnetic products. The lower part of the machine are plugged wash pipe to regulate the thickness of concentration. This models apply to the roughing and fining of strong magnetic minerals of 0-0.5mm, and the recovery rate and ore concentrate grade is high.
  主要型号及技术参数:
  MAIN MODELS AND TECHNICAL PARAMETERS:

型号规格

Model and specification

筒体直径×长度

Shell diameter*length(mm)

筒体转速

Shell rev(r/min)

筒表磁场强

度Magnetic density of the shell surface(mT)

给矿浓度%

Thickness of feeding

处理能力

(干矿量)Handling capability of ore(t/h)

电机功率

power(kw)

外形尺寸

(长×宽×高)Outside measurement(L×W×H)(mm)

重量

Weight(kg)

CTB46

Φ400×600

45

120-150

25-35

1-3

1.1

1300×800×800

400

CTB49

Φ400×900

45

120-150

25-35

2-4

1.1

1600×800×800

550

CTB69

Φ600×900

38

120-150

25-35

8-10

1.5

1700×1050×1100

600

CTB612

Φ600×1200

38

120-150

25-35

10-15

1.5

2000×1050×1100

750

CTB615

Φ600×1500

38

120-150

25-35

15-20

2.0

2300×1050×1100

870

CTB79

Φ700×900

33

120-150

25-35

10-15

1.5

1700×1500×1300

670

CTB712

Φ700×1200

33

120-150

25-35

15-20

2.2

2100×1500×1300

900

CTB715

Φ700×1500

33

120-150

25-35

25-30

2.2

2400×1500×1300

1100

CTB718

Φ700×1800

33

120-150

25-35

30-35

3

2750×1500×3100

1300

CTB912

Φ900×1200

30

120-150

25-35

25-30

3

2200×1500×1600

1100

CTB915

Φ900×1500

30

120-150

25-35

30-35

3

2500×1500×1600

1350

CTB918

Φ900×1800

30

120-150

25-35

35-45

4

2850×1500×1600

1700

CTB920

Φ900×2000

30

120-150

25-35

45-50

4

3150×1500×1600

2150

CTB1012

Φ1050×1200

25

120-150

25-35

30-40

3

2200×1600×1700

1250

CTB1015

Φ1050×1500

25

120-150

25-35

40-55

4

2550×1600×1700

1500

CTB1018

Φ1050×1800

25

120-150

25-35

55-100

4

2850×1600×1700

1750

CTB1020

Φ1050×1200

25

120-150

25-35

60-120

5.5

3250×1600×1700

2100

CTB1024

Φ1050×2400

25

120-150

25-35

65-125

5.5

3550×1600×1700

2500

CTB1215

Φ1200×1500

20

120-150

25-35

50-90

4

2550×1950×2100

2300

CTB1218

Φ1200×1800

20

120-150

25-35

55-100

5.5

2950×1950×2100

2800

CTB1220

Φ1200×2000

20

120-150

25-35

60-110

5.5

3250×1950×2100

3400

CTB1224

Φ1200×2400

20

120-150

25-35

70-130

7.5

3650×1950×2100

4100

CTB1230

Φ1200×3000

20

120-150

25-35

80-150

7.5

4000×1950×2100

5000
