MC系列
直接联系
上海美矿机械有限公司
上海
面议
美矿
MC系列
3054
--
很好的抗疲劳性、很好的可靠性和多种安装方式。
MC系列颚式破碎机的主要特性：MACKORN MC系列颚式破碎机均采用创新的模块化、无焊接框架结构，因而赋予设备很好的抗疲劳性、很好的可靠性和多种安装方式。得益于精确平衡的整体结构，MC系列颚式破碎机安装简便且经济。配合使用特殊的优质铸钢组件和耐久的磨损部件，赋予其**的适用性、杰出的经济性和较低的吨运行成本
The MACKORN MC Series crushers are based on a revolutionary
modular,non-welded frame construction,offering owners the highest
possible fatigue styrength,excellent reliability and numerous monting
possibilities,Thanks to the accurately balanced structure,the MC Series
jaws are easy and economical to install.Combined with special
high-quality cast steel componets and durable wear parts,means
exceptionally high crusher avalilability,cost-efficient crushing and low
cost per ton.
|
高质量和可靠性 ***的工艺和材料 模块式、无焊接结构 比同级别破碎机的轴承更大，四个轴承规格相同 铸钢动颚体和前后墙体 整体铸钢轴承座 可修复的破碎机机架 性能优秀 恰到好处的破碎腔设计 大冲程，**转速和高功率 小排料口设计 多种齿板和边护板适用各种应用 |
使用和安装成本低 易于实现自动化 快速而安全的双锲块排料口调整系统 保护板安装在颚板后面 橡胶块安装 一体化的机电底座 飞轮保护罩结构紧凑，便于维修 定制的给料槽 自动油脂润滑 应用广泛的固定和移动设备 石料 矿山(井上和井下) 废物回收(混凝土，沥青等) 工业(矿渣，阳极等) |
|
High quality and reliability word-class craftsmanship and material Modular,non welded construction Four equal size bearings that larger than those of most crusher of comparable size Cast steel pitman and crusher frames Single-piece cast steel frame bearing housings Repair crusher construction Outstanding performance Efficient cavity designs Long stroke,optimum speed Small allowed crusher settings The Right jaws and cheek plates for the widest range of applications |
Low operating and installation costs Easy to automate Fast and safe wedge setting adjustments system Protection plates behind the jaw plates Rmper crusher mounting Versatile integral motor base Compact and service friendly flywheel guards Custom feed chute Automatic grease lubrication system Used in a wide range of applications,both stationary and mobile Aggregate Minling(surface and underground) Recycling(concrete,asphalt,etc) Industrial(slag,anodes,etc) |
| 技术数据 |
| MC80 | MC96 | MC100 | MC110 | MC125 | MC140 | MC145 | MC160 | MC200 | ||
|
给料口宽度(MM) Feed opening width |
800 | 930 | 1000 | 1100 | 1250 | 1400 | 1400 | 1600 | 2000 | |
|
给料深度(mm) Feed opening depth |
510 | 580 | 760 | 850 | 950 | 1070 | 1100 | 1200 | 1500 | |
|
电机功率(Kw) Power |
75 | 90 | 110 | 160 | 160 | 200 | 200 | 250 | 400 | |
|
转速(rpm) speed |
350 | 330 | 260 | 230 | 200 | 220 | 220 | 220 | 200 | |
|
产品尺寸(mm) Porduct size |
紧边排料口(MM) Closed size setting |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
吨/小时 T/H |
| 0-30 | 20 | |||||||||
| 0-35 | 25 | |||||||||
| 0-45 | 30 | |||||||||
| 0-60 | 40 | 65-85 | ||||||||
| 0-75 | 50 | 80-95 | ||||||||
| 0-90 | 60 | 95-125 | 120-155 | |||||||
| 0-105 | 70 | 115-150 | 140-180 | 150-210 | 190-250 | |||||
| 0-120 | 80 | 130-170 | 160-210 | 170-225 | 210-275 | |||||
| 0-135 | 90 | 150-195 | 180-235 | 190-245 | 235-305 | |||||
| 0-150 | 100 | 165-215 | 200-260 | 215-280 | 255-330 | 290-380 | ||||
| 0-185 | 125 | 210-275 | 250-325 | 265-345 | 310-405 | 350-455 | 380-500 | 400-520 | ||
| 0-225 | 150 | 250-325 | 300-390 | 315-410 | 370-480 | 410-535 | 455-590 | 470-610 | 520-675 | |
| 0-260 | 175 | 290-380 | 350-455 | 370-480 | 425-550 | 470-610 | 520-675 | 540-700 | 595-775 | 760-990 |
| 0-300 | 200 | 420-545 | 480-625 | 530-690 | 590-765 | 610-795 | 675-880 | 855-1110 | ||
| 0-340 | 225 | 590-770 | 655-850 | 680-885 | 750-975 | 945-1230 | ||||
| 0-375 | 250 | 650-845 | 725-945 | 750-975 | 825-1070 | 1040-1350 | ||||
| 0-410 | 275 | 820-1070 | 900-1170 | 1130-1470 | ||||||
| 0-450 | 300 | 980-1275 | 1225-1590 | |||||||
|
注：该数据根据当地使用情况采集获得。
|

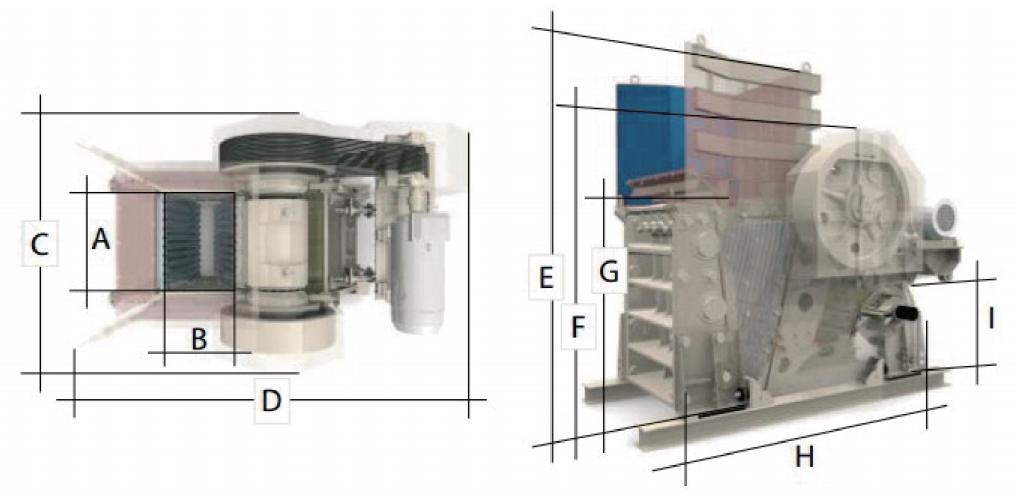

| MC80 | MC96 | MC100 | MC110 | MC125 | MC140 | MC145 | MC160 | MC200 | ||
| A | mm | 800 | 930 | 1000 | 1100 | 1250 | 1400 | 1400 | 1600 | 2000 |
| B | mm | 510 | 580 | 760 | 850 | 950 | 1070 | 1100 | 1200 | 1500 |
| C | mm | 1526 | 1755 | 2420 | 2385 | 2800 | 3010 | 3110 | 3700 | 4040 |
| D | mm | 2577 | 2880 | 3670 | 3770 | 4100 | 4400 | 4600 | 5900 | 6700 |
| D | mm | 1990 | 1610 | 2890 | 2890 | 3440 | 3950 | 4100 | 4580 | 4950 |
| F | mm | 1750 | 1460 | 2490 | 2750 | 2980 | 3140 | 3410 | 3750 | 4465 |
| G | mm | 1200 | 755 | 1700 | 1940 | 2100 | 2260 | 2430 | 2650 | 2800 |
| H | mm | 2100 | 2500 | 2965 | 2820 | 3470 | 3755 | 2855 | 4280 | 4870 |
| I | mm | 625 | 465 | 775 | 580 | 980 | 1050 | 1050 | 1300 | 1400 |
|
破碎机自重 Basic crusher weight |
Kg | 7670 | 9759 | 20060 | 25800 | 37970 | 47120 | 54540 | 7130 | 121510 |
|
破碎机总重 Total weight |
Kg | 9520 | 11870 | 23300 | 29500 | 43910 | 54010 | 63190 | 83300 | 137160 |
