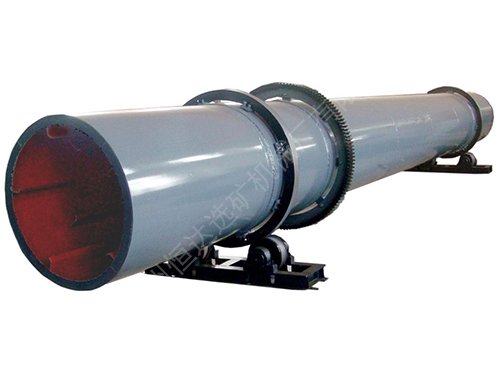

转筒式烘干机

直接联系

郴州恒达选矿机械厂有限公司

湖南

产品规格型号

参考报价：

面议

品牌：

恒达

型号：

关注度：

5486

范围（量程或细度）：

产品介绍

　　转筒式烘干机简称烘干机是一种处理大量物料的干燥器。由于运转可靠、操作弹性大、适应性强、处理量大，广泛使用于冶金、建材、食品、轻工、化工、煤炭、医药矿产业中。回转转筒干燥器一般适应于颗粒状物料，也可用于部分掺入物料的办法干燥粘状膏状物料或含水量较高的物料。它的优点是生产能力大、适用范围广、流量阻力小、操作上允许波动范围较大、操作方便等。常用于烘干沙子、矿粉、煤泥等。
　　Rotary dryer is shorted for dryer which is a kind of airer can handle a lot of material. As it is reliable and flexible to operate, and has strong adaptability and large handling capability which is widely used in metallurgy, building materials, food processing, light industry, chemicals, coal, medicine and mining industries .Rotary cylinder dryer apply to the granular materials in general, and can also be used for drying sticky paste-like materials or materials with high water by mixing some materials. It has the advantage of large capacity and wide range of adaptability and small flow rate resistance, allow large fluctuations in the operation, and is convenient to operate and so on. Commonly ,it is used in drying sand, slag, coal and so on.
　　主要型号及技术参数:
　　MAIN MODELS AND TECHNICAL PARAMETERS:

型号Model	倾斜度 Tilt angle(% )	转速 Rev(r/min)	进气温度 The temperature of inspiration(℃)	功率 Power(kw)	生产能力Productivity(t/h)	重量Weight(t)
φ800×8000	3-5	3-8	≤700	4	0.8-2	3.5
φ800×10000	3-5	3-8	≤700	4	0.8-2.5	4.5
φ1000×10000	3-5	3-8	≤700	5.5	1-3.5	5.6
φ1200×10000	3-5	3-8	≤700	7.5	1.8-5	13.5
φ1200×12000	3-5	3-8	≤700	11	2-6	14.8
φ1500×12000	3-5	2-6	≤800	15	3.5-8	17.8
φ1800×12000	3-5	2-6	≤800	18.5	5-9	25
φ2200×12000	3-5	1.5-6	≤800	18.5	7-12	38
φ2200×18000	3-5	1.5-6	≤800	22	7-13	53.8
φ2200×20000	3-5	1.5-6	≤800	30	8-14	56
φ2400×14000	3-5	1.5-5	≤800	30	10-14	51
φ2400×18000	3-5	1.5-5	≤800	37	10-15	54
φ2400×20000	3-5	1.5-5	≤800	37	10-16	60
φ3000×20000	3-5	1.5-5	≤800	55	25-30	78
φ3000×25000	3-5	1.5-5	≤800	75	30-36	105
